How Secure are TPM Chips?

This article demonstrates that the security of BitLocker for full disk encryption - when deployed in conjunction with Trusted Platform Module (TPM) - is no longer enough to effectively ensure the confidentiality of that encrypted data.

Full Disk Encryption is no longer enough.

This article demonstrates that the security of BitLocker for full disk encryption – when deployed in conjunction with Trusted Platform Module (TPM) – is no longer enough to effectively ensure the confidentiality of that encrypted data.

Download our briefing document “How Secure are TPM Chips?” or read the article below.

Can you hack TPM chips? Yes.

Organisations that employ these technologies should consider CovertSwarm’s findings and review the associated information security risks and their impact upon their security posture.

We acknowledge and expand upon the TPM work carried out by Henri Nurmi at F-Secure [0], to demonstrate a real-world attack chain against Microsoft’s BitLocker full disk encryption. Our simulated breach was performed during the Summer of 2021 against one of CovertSwarm’s clients subscribed to our flagship Constant Cyber Attack service.

Extracting BitLocker Encryption Keys from TPM to decrypt full disk contents and escalate privileges.

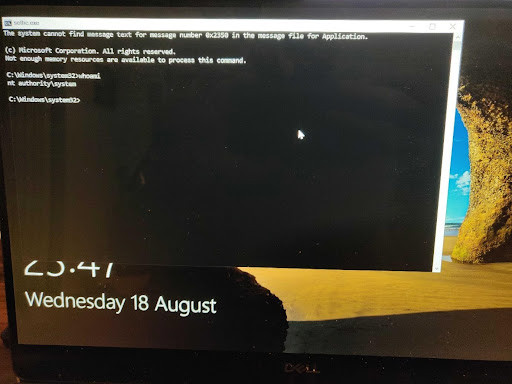

We will explain how – from a fully encrypted device – we not only obtained the BitLocker key from the device’s TPM but then proceeded to access the full disk contents that allowed us to escalate privileges upon the device.

We will also delve into some of the difficulties experienced – and workarounds – that were made.

Covert Swarm logo

Background

One of our Constant Cyber Attack clients directed our swarm to the scenario of a corporate laptop being stolen, asking the following:

“What would be possible in the hands of a hacker or malicious individual?”

This client has had numerous Penetration Testing engagements previously and implemented hardening of their Windows laptop builds using industry-standard ‘best practices’ such as device lockdown and full disk encryption via BitLocker.

CovertSwarm exists to constantly compromise our clients, therefore we wanted to simulate how a real-world threat actor might approach and fully exploit such a situation with their aim to gain access to the encrypted disk contents and take complete control of the device to in-turn use this to further breach our client.

We enacted a staged theft of one of their modern Dell XPS 9370 laptops running Windows 10 Professional, which housed a TPM 2.0 chip and set to work.

TPM Behind the Scenes

Let’s first dive into TPM to help set the scene for the attack.

What is a TPM chip and what does it do?

Trusted Platform Module (TPM) is a secure cryptoprocessor that is designed to carry out cryptographic operations to authenticate users. Additionally, a TPM can attest that the host system has not been compromised or been modified whilst offline.

The TPM achieves this by monitoring the boot process and measuring these results or ‘secrets’ within a Platform Configuration Register (PCR).

How does a TPM chip work and what does it protect against?

TPM currently has two versions 1.2 and 2.0. TPM 1.2 was released in 2005, and the most recent revision it received was in 2011. TPM 2.0 was first released in 2014, with the most recent revision being in 2019.

The TPM 2.0 specification is a “library specification”, which means that it supports a wide variety of functions, algorithms, and capabilities upon which future platform-specific specifications will be based. One of the primary differences between 1.2 and 2.0 is the supported hashing algorithms and functionality that the chip itself can support, for example, TPM 1.2 only employs the insecure SHA-1 hashing algorithm, whereas TPM 2.0 supports SHA2-256.

BitLocker’s main objective is to protect user data at rest and upon the protected volume of the host’s hard drive. To achieve this, disk sectors are encrypted with a Full Volume Encryption Key (FVEK), which is always encrypted with the Volume Master Key (VMK), which, in turn, is bound to the TPM. The VMK directly protects the FVEK and therefore, protecting the VMK becomes critical. By storing these encryption keys in the TPM along with a reference to a specific PCR state, data can be effectively locked.

The keys are only unlocked and released once the state of the system is validated against the stored PCR values, ensuring that encrypted systems can only be accessed if specific hardware or software conditions are met.

BitLocker can be configured to use additional protectors in the form of a numerical PIN number, USB start-up key, or both PIN and USB start-up key, which is used to further protect the VMK. When these additional protectors are in place the TPM will require extra information before unsealing the VMK.

It should be noted that an attack could still obtain the key however this capture would need to occur at the same time as the PIN is entered. Without the use of these protectors, the decryption process starts automatically exposing the VMK.

Previous research has highlighted that by default the TPM traffic is not encrypted when the TPM is communicating with the CPU, which allows for electronic signals to be captured – or ‘sniffed’ – during its operation.

Methods of Extracting Data

During our investigation several differing TPM chips and vendors were identified [1] which have a documented SPI interface:

SPI, or Serial Peripheral Interface, is a synchronous serial communications interface supporting full-duplex communication with high-speed clock frequencies. It uses master-slave architecture, where the master device always initiates the communication.

Modern computers often have these common IC (integrated circuit) packages included within their motherboard design; however, several aftermarket options are available.

IC package 1IC package 2

Two common packages breakdowns as per the images. There are several pins that were of interest to our attack scenario that was specifically related to the SPI protocol.

  • SPI_CLK: Serial Clock

  • MOSI: Master Out Slave In

  • MISO: Master in Slave Out

  • SPI_CS: Chip Select

The form-factor of the TPM chip within the ‘stolen’ laptop we focused our attack upon inhibited the trivial extraction of its data due to the chip’s location and size presenting us with difficulty when connecting a Logic Analyser device (described later) to its physical pins. That said, with sufficient time we found this to be achievable and we were ultimately able to connect to the TPM chip from an external source.

A shortcut to this means of connection was found to be possible through our identification of the laptop’s CMOS flash chip that was located on the same physical trace bus as the TPM – which connects both to the CPU via the SPI (Serial Peripheral Interface) protocol. Additionally, the CMOS chip was more easily accessible due to its somewhat larger size (vs TPM) and its reduced number of pins.

CMOS chip and TPM chip

As the SPI bus communicated openly between the TPM and CMOS chips the aim was to capture signals both destined to and sourced from the TPM by connecting to the CMOS pins as a physical proxy.

In respect of this attack, the key SPI interfaces of the CMOS chip consisted of four input/output signal connections:

  • SCLK: Serial Clock (Pin 1)

  • MISO: Master in Slave out (data from the slave) (Pin 2)

  • MOSI: Master out Slave in (data from the master) (Pin 5)

  • Enable: Enable (Pin 6)

The layout of the chip connections was identified through publicly accessible information in the form of product datasheets:

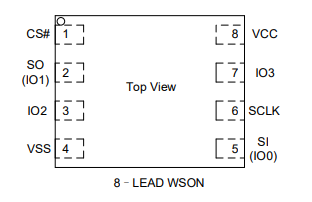

Chipset layout as per the specific flash chip datasheet [2]

To extract the VMK from the TPM, a cold boot – or ‘side-channel attack’ – would need to take place. During this attack, a malicious actor would require physical access to the laptop, in addition to a Logic Analyser device.

A Logic Analyser is a device that is capable of capturing and displaying multiple signals from a digital system or circuit.

It may convert the captured data into timing diagrams, protocol decodes, state machine traces, assembly language, or may correlate assembly with source-level software.

Setup & Execution

We began by connecting the logic analyser to the CMOS chip and configuring the capture software (Logic2 [3]) to record data based upon the specified pin layout.

Of note is that the Enable signal needed to be inverted due to the connection being established via the CMOS chip rather than the TPM chip, where the latter is specified as being a low enable signal. An actual attack could take seconds to perform, but due to the small form factor of the CMOS chip an IC test clip could not be connected, and the pin connection had to be fabricated using alternative, bespoke tools and connectors. We found that smaller form factor test clips are available for purchase, and varied in size and configuration and so could be obtained by an attacker attempting to complete this attack more quickly.

Once the physical connections were established it was possible to then initiate a stream capture of the signals via the logic analyser, and so we powered on the laptop.

Within 10 seconds sufficient data had been captured to begin the analysis for discovery of the TPM data:

Captured signals from device powering on.
